This may be in the form of a phasor diagram, or using an alpha-numeric code to show the type of internal connection wye or delta for each winding. In other words, the phase shift from primary to secondary will be zero degrees. The schematic diagram does not change. This phenomenon is the basis on which transformers operate.

Transformer Phasing The Dot Notation and Dot Convention

Electronics TextbookInductor in Series and ParallelInductor in Series and Parallel - Electronics Tutorials

But, such is not always the case. Dots on other coils are now automatically decided according to the sense of the winding. Two circuits linked by the same magnetic field are said to be coupled to each other. The self-inductance of a circuit is intimately associated with the magnetic field linking the circuit.

It is represented by symbol M and is measured in henrys. This series connection is known as series opposing.

Fundamental and Generation of Alternating Current. To eliminate any confusion in the phase relation between primary and secondary voltage and current, a dot convention has been adopted for transformer schematic diagrams. An ideal transformer acts the same as a pair of wires, except that input is isolated from output. This is simple enough, but it would be nice to know which way we should connect a transformer in order to ensure the proper phase relationships be kept.

Also the primary and secondary currents I P and I S are opposite in direction. This also means, that due to rate of change of the common flux emfs are induced in all the coils which have similar polarity at all the dotted terminals. When the flux due to one coil does not link with the other coil at all, the value of coefficient of coupling, K is zero. Both current and voltage waveforms are in-phase in going from primary to secondary. In this case there is no mutual inductance i.

Email Required, but never shown. All four diagrams above represent the same physical configuration.

Polarity (mutual inductance)

Reversed connections of paralleled transformer windings will cause circulating currents or an effective short circuit. Of course, the dot convention only tells you which end of each winding is which, relative to the other winding s. Since they are both at the top of the inductor coil, does that mean they are in phase?

Navigation menu

On the diagram will be a pair of dots similar to what is seen above. Three-phase transformers used in electric power systems will have a nameplate that indicate the phase relationships between their terminals. According to corkscrew rule the flux is directed upwards through the coil. Home Questions Tags Users Unanswered.

In addition, the primary and secondary voltages V P and V S sine waves are opposite to each other. We can see that one dot is positioned at the top in primary terminal and the other one dot is placed at bottom of secondary terminal. Makes it much easier to see the results.

Electronics Textbook

For the series opposing connections the mutually induced emf opposes the self-induced emf. Coupling between two closed circuits permits the transfer of energy between the circuits through the medium of the mutual magnetic field.

Confusion about dot convention in an ideal transformer Ask Question. Redirected from Dot convention. Transformer Conventions It would appear that both voltage and current for the two transformer windings are in-phase with each other, at least for our resistive load. Generally, when we study about Transformers, black book of carmarthen pdf we assume that the primary and secondary voltage and currents are in phase. What is the difference between Power Transformers and Distribution Transformers?

If you physically reverse the sense of one of the coils, you have to move its dot, too. Moreover, the primary and secondary voltages V P and V S have similar sine wave, also the primary and secondary I P and I S currents are same in direction.

As both coils are connected in parallel, therefore, resultant emf induced in both of the coils must be equal. It shows that the primary and secondary current and voltages are in phase. Such a series connection is known as series aiding.

Navigation menu

It has been assumed that the axes of the inductance coils are on the same straight line. The second coil will, therefore, show an induced current opposite in direction to the inducing current in the first coil.

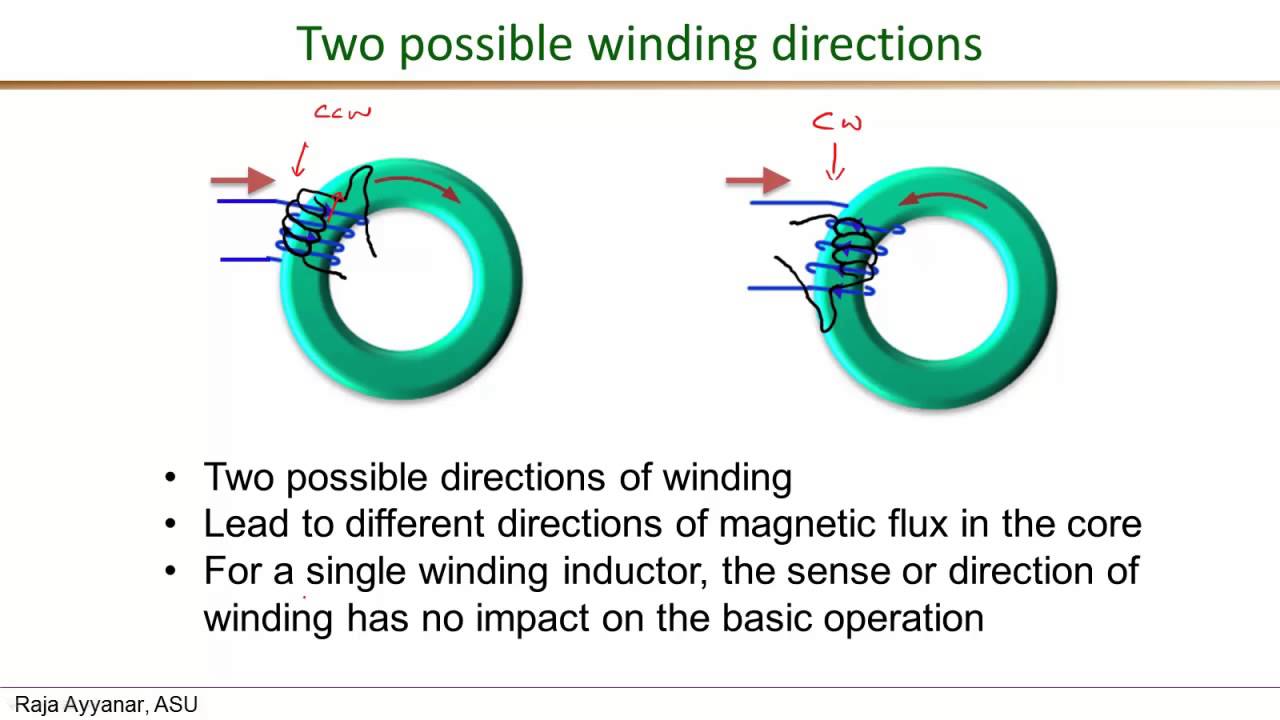

In Transformer, The phase relation between primary and secondary currents and voltages depends on how each winding is wrapped around the core. Leave a Reply Cancel reply Your email address will not be published. The self-inductance emf may be thought of as the emf induced in the circuit by a magnetic field produced by the circuit current. Note that in case a the ratio of the currents is negative while in b it is positive but the secondary current arrows are reversed. Two methods are commonly used to denote which terminals present the same relative polarity.
